Ductile Iron Fittings

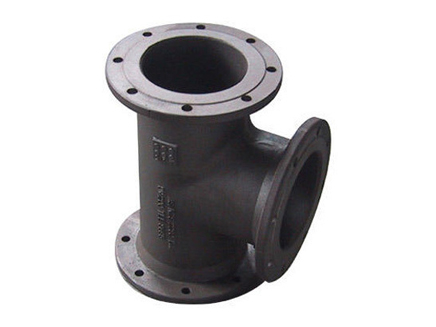

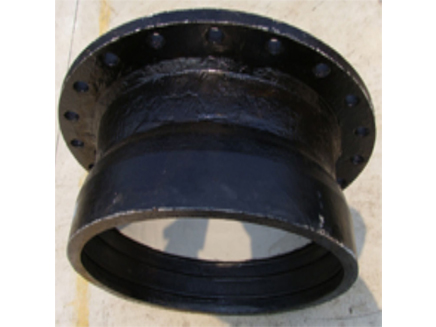

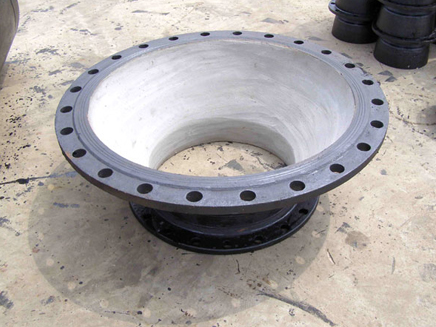

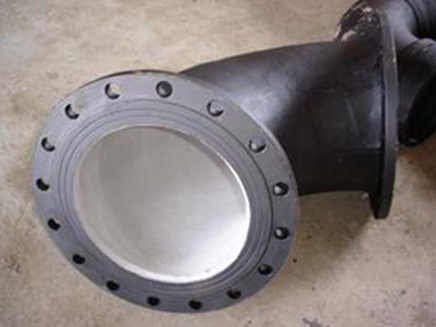

Ductile Iron Fittings are used for in connection with Ductile Iron Pipes of both flange and socket ends. These have range of products such as Bends, Tees, Reducers, Collars, etc. and are connected either using SBR / EPDM Rubber Rings or Flange Rubber Gaskets & Nut Bolts. These are available in IS:9523& ISO:2531 with PN ratings of PN 10 & PN 16.
| Size (Diameter) | DN 80 mm – DN 1000 mm |
| Standard | IS:9523 Class K-12 & ISO:2531 |
| Types | Socket Ends & Flange Ends |
| External Lining | Zinc Coating with Final Layer of Black Bituminous Coating |
| Zinc Coating with Final Layer of Epoxy Coating | |
| Internal Lining | Cement Mortar Lining |
| Ceramic Epoxy Lining | |
| Jointing | SBR (Styrene Butadyne Rubber) or EPDM (Ethylene Propylene Dimethyle Monomer) confirming to IS:5382 for Socket Joints. Natural Flange Rubber Gasket & Nut Bolts for Flange Joints. |
